AWG（任意波形发生器）

Pulse Rider PG-1000：Ordering Code：Models：PG-1072，PG-1074。Options:PG-1072-WAR，PG-1072-WAR。Pulse Rider PG-1500:PG-1501，PG-1502。Options:PG-1501-WAR，PG-1502-WAR。Arb Rider AWG-7000 series：2 Ch. Models:AWG-7202，AWG-7202D，AWG-7172，AWG-7172D，AWG-7102，AWG-7102D。4 Ch. Models:：AWG-7204，AWG-7204D，AWG-7174，AWG-7174D，AWG-7104，AWG-7104D。4 Ch. Models (short mem.)：AWG-7204-S，AWG-7204D-S，AWG-7174-S，AWG-7174D-S，AWG-7xx2-WAR，AWG-7xx4-WAR。Arb Rider AWG-5000 series：Models：AWG-5062，AWG-5062D，AWG-5064，AWG-5064D，AWG-5068，AWG-5068D，AWG-5062-WAR，AWG-5064-WAR，AWG-5068-WAR。Arb Rider AWG-4012 / AWG-4014 / AWG-4018：Models：AWG-4012-2M，AWG-4012-64M，AWG-4012-128M，AWG-4012-1G，AWG-4014-2M，AWG-4014-64M，AWG-4014-128M，AWG-4014-1G，AWG-4018-2M，AWG-4018-64M，AWG-4018-128M，AWG-4018-1G。Arb Rider AWG-2000 series：Models：AWG-2182-2M，AWG-2182-64M，AWG-2182-256M，AWG-2184-2M，AWG-2184-64M，AWG-2184-256M。

Pulse Rider PG-1500 2、4或8个模拟通道; 6.16 GS/s（在RF模式下为12.32 GS/s）;16位垂直分辨率;高达6 GHz的输出频率;<110ps 上升/下降时间;230ps最小脉冲宽度;单端输出，可输出高达5 Vp-p至50 Ω，硬件偏移范围为±2.5V至50 Ω。总输出电压窗口为±5 V（10 Vp-p）至50欧姆; 差分输出，可输出高达3 Vp-p至100 Ω，共模电压范围为±2 V至50 Ω; 每个通道最多4 Gpts的波形存储器 同步使用模拟生成的最多32个数字通道 多仪器同步：最多32个模拟通道和128个数字通道 Details

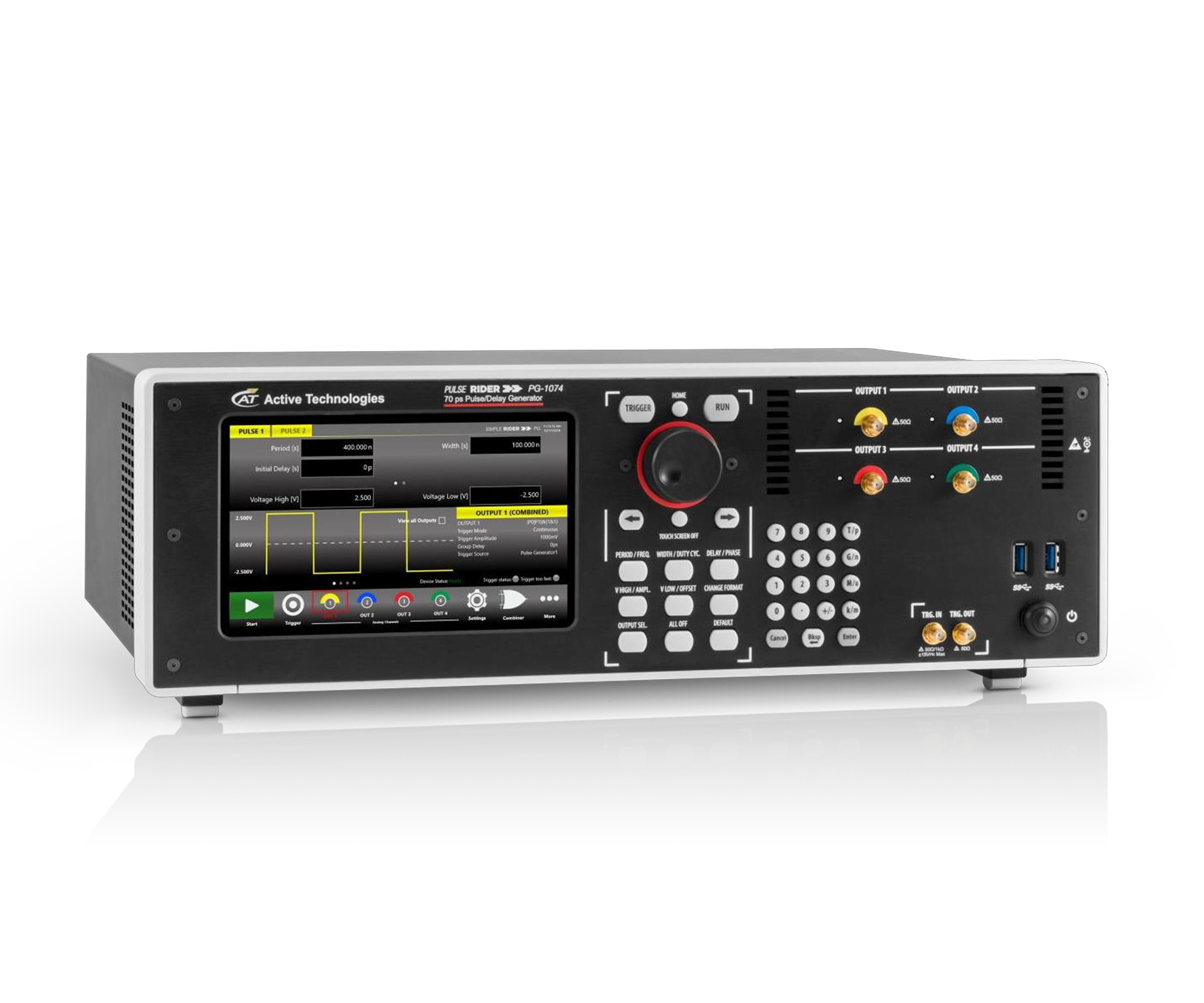

PG-1072_1074_Technical_Specifications_220215 - CN Pulse Rider PG-1000：Ordering Code：Models：PG-1072：2 Channels Pulse Generator 70 ps edge time 5 Volts；PG-1074：4 Channels Pulse Generator 70 ps edge time 5 Volts。Options:PG-1072-WAR：3 years warranty extension for PG-1072；PG-1074-WAR：3 years warranty extension for PG-1074。 Details

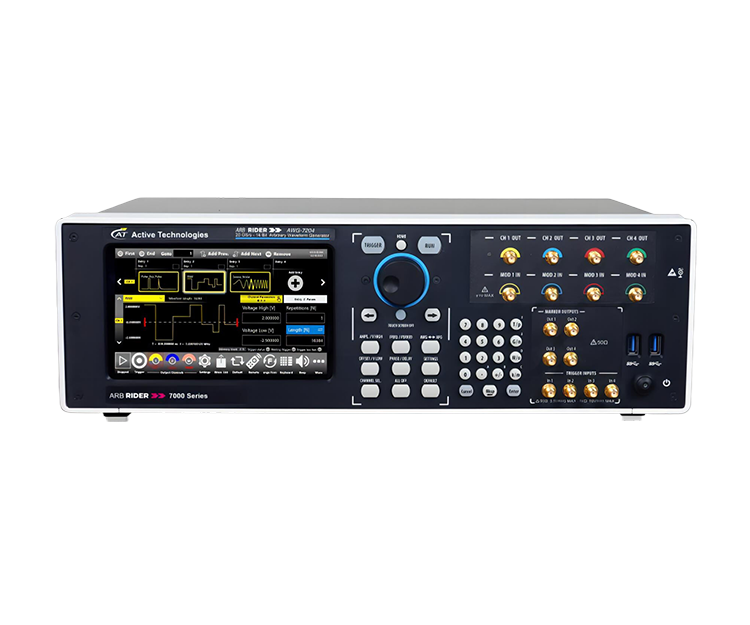

AWG7000Series_datasheet_240515 CN Arb Rider AWG-7000 series：2 Ch. Models：AWG-7202：2CH - 20 GS/s - 10 GHz - 9 Gpts / 1 Mpts Memory - 5Vpp single ended output；AWG-7202D：2CH - 20 GS/s - 10 GHz - 9 Gpts / 1 Mpts Memory - 1.25Vpp differential output；AWG-7172：2CH - 17 GS/s - 8.5 GHz - 9 Gpts / 1 Mpts Memory - 5Vpp single ended output；AWG-7172D：2CH - 17 GS/s - 8.5 GHz - 9 Gpts / 1 Mpts Memory - 1.25Vpp differential output；AWG-7102：2CH - 10 GS/s - 5 GHz - 4.5 Gpts Memory per CH - 5Vpp single ended output；AWG-7102D：2CH - 10 GS/s - 5 GHz - 4.5 Gpts Memory per CH - 1.25Vpp differential output。 4 Ch. Models：AWG-7204：4CH - 20 GS/s - 10 GHz - 9 Gpts / 589 Kpts Memory - 5Vpp single ended output；AWG-7204D：4CH - 20 GS/s - 10 GHz - 9 Gpts / 589 Kpts Memory - 1.25Vpp differential output；AWG-7174：4CH - 17 GS/s - 8.5 GHz - 9 Gpts / 589 Kpts Memory - 5Vpp single ended output；AWG-7174D：4CH - 17 GS/s - 8.5 GHz - 9 Gpts / 589 Kpts Memory - 1.25Vpp differential output；AWG-7104：4CH - 10 GS/s - 5 GHz - 4.5 Gpts Memory per CH - 5Vpp single ended output；AWG-7104D：4CH - 10 GS/s - 5 GHz - 4.5 Gpts Memory per CH - 1.25Vpp differential output。4 Ch. Models (short mem.)：AWG-7204-S：4CH - 20 GS/s - 10 GHz - 512 Kpts Memory per CH - 5Vpp single ended output；AWG-7204D-S：4CH - 20 GS/s - 10 GHz - 512 Kpts Memory per CH - 1.25Vpp differential output；AWG-7174-S：4CH - 17 GS/s - 8.5 GHz - 512 Kpts Memory per CH - 5Vpp single ended output；AWG-7174D-S：4CH - 17 GS/s - 8.5 GHz - 512 Kpts Memory per CH - 1.25Vpp differential output；AWG-7xx2-WAR：3 year warranty extension for AWG-7000 - 2 Channel models；AWG-7xx4-WAR：3 year warranty extension for AWG-7000 - 4 Channel models。 Details

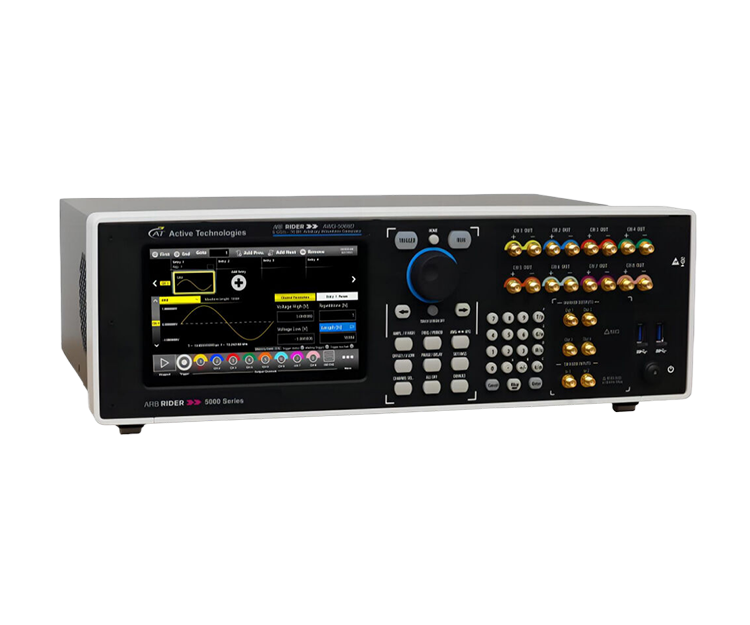

AWG5000Series_datasheet_230907 Arb Rider AWG-5000 series：Models：AWG-5062： 2CH -6 GS/s - 2 GHz - 2048Mpts per CH - 5Vpp single ended output；AWG-5062D： 2CH -6 GS/s - 2 GHz - 2048Mpts per CH - 1.5Vpp differential output；AWG-5064：4CH -6 GS/s - 2 GHz - 2048Mpts per CH - 5Vpp single ended output；AWG-5064D：4CH -6 GS/s - 2 GHz - 2048Mpts per CH - 1.5Vpp differential output；AWG-5068：8CH -6 GS/s - 2 GHz - 2048Mpts per CH - 5Vpp single ended output；AWG-5068D：8CH -6 GS/s - 2 GHz - 2048Mpts per CH - 1.5Vpp differential output；AWG-5062-WAR：3 year warranty extension for AWG-5062 and AWG-5062D；AWG-5064-WAR ： 3 year warranty extension for AWG-5064 and AWG-5064D；AWG-5068-WAR：3 year warranty extension for AWG-5068 and AWG-5068D Details

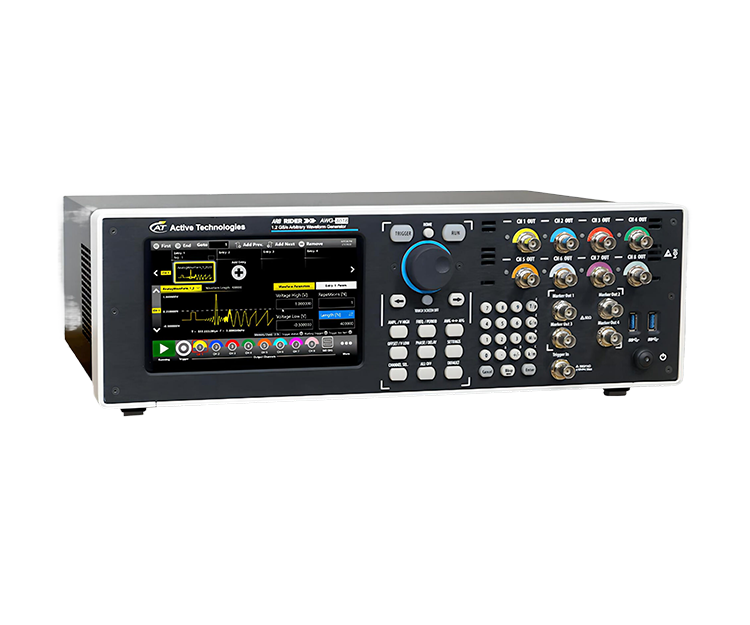

ArbRider4012_4014_4018_datasheet_211028 Arb Rider AWG-4012 / AWG-4014 / AWG-4018：Models：AWG-4012-2M：2ch-1,2Gs/s AWG- 2Ms memory - 300MHz AFG - 6Vpp；AWG-4012-64M：2ch-1,2Gs/s AWG- 64Ms memory - 300MHz AFG - 6Vpp；AWG-4012-128M：2ch：1,2Gs/s AWG- 128Ms memory - 300MHz AFG - 6Vpp；AWG-4012-1G：2ch-1,2Gs/s AWG- 1024Ms memory - 300MHz AFG - 6Vpp；AWG-4014-2M：4ch-1,2Gs/s AWG- 2Ms memory - 300MHz AFG - 6Vpp；AWG-4014-64M：4ch-1,2Gs/s AWG- 64Ms memory - 300MHz AFG - 6Vpp;AWG-4014-128M:4ch-1,2Gs/s AWG- 128Ms memory - 300MHz AFG - 6Vpp;AWG-4014-1G:4ch-1,2Gs/s AWG- 1024Ms memory - 300MHz AFG - 6Vpp;AWG-4018-2M:8ch-1,2Gs/s AWG- 2Ms memory - 300MHz AFG - 6Vpp;AWG-4018-64M:8ch-1,2Gs/s AWG- 64Ms memory - 300MHz AFG - 6Vpp;AWG-4018-128M:8ch-1,2Gs/s AWG- 128Ms memory - 300MHz AFG - 6Vpp;AWG-4018-1G:8ch-1,2Gs/s AWG- 1024Ms memory - 300MHz AFG - 6Vpp Details

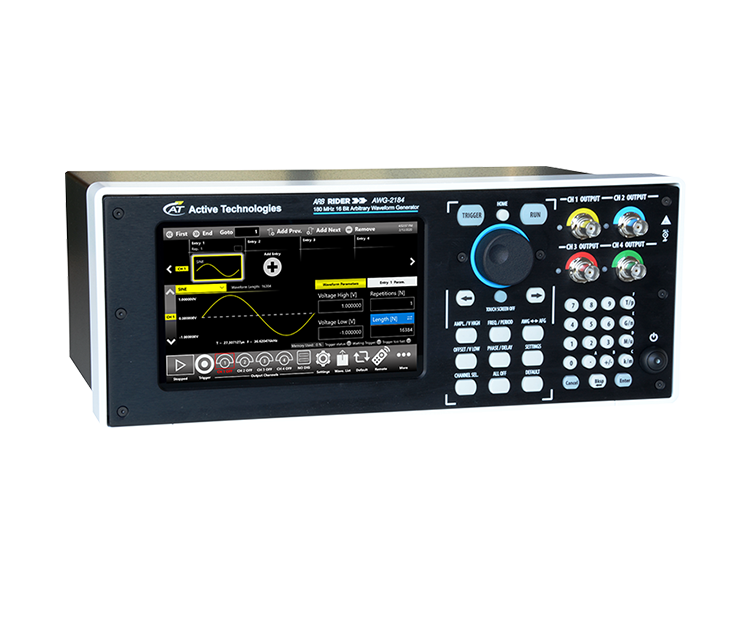

ArbRider2182_2184_datasheet_211028 Arb Rider AWG-2000 series：Models：AWG-2182-2M：2ch 600Ms/s AWG- 2Ms memory - 180MHz AFG；AWG-2182-64M：2ch 600Ms/s AWG- 64Ms memory - 180MHz AFG；AWG-2182-256M：2ch 600Ms/s AWG- 256Ms memory - 180MHz AFG；AWG-2184-2M:4ch 600Ms/s AWG- 2Ms memory - 180MHz AFG;AWG-2184-64M:4ch 600Ms/s AWG- 64Ms memory - 180MHz AFG;AWG-2184-256M:4ch 600Ms/s AWG- 256Ms memory - 180MHz AFG。 Details
